Infrastructure operators manage networks that stretch across entire regions: rail lines, bridges, transmission towers, water mains, and dams that ground inspection cannot cover at a useful frequency.
Satellite sensors measure the same asset the same way on a repeating schedule, turning scattered site visits into a continuous, comparable record across an entire network.
This guide covers how satellite data is applied across infrastructure types, what each task demands, and helps you find the right data and provider for your infrastructure program.
Table of Contents
Key takeaways
- Infrastructure spans many asset types, and vegetation risk and structural deformation call for different sensors
- Bridges, dams, and rail beds move by millimeters long before a visible failure appears
- The right shortlist narrows fast once you know whether you need corridor growth or structural movement
Before any provider enters the picture, an infrastructure program has to settle what it needs from the data itself. The summary below sets out the sensors, resolution, and cadence that operational infrastructure monitoring depends on.
| Primary sensors | Multispectral optical, SAR (InSAR) |
|---|---|
| Working resolution | Sub-meter optical, millimeter-scale InSAR |
| Typical revisit | Daily with dedicated SAR tasking |
| Core indices | NDVI, InSAR displacement rate |
| Entry cost | From $4 per km² optical, or by quote |
| Main constraint | InSAR needs a multi-month baseline |
Those figures cover the baseline most monitoring programs share. Programs built around deformation trends, contamination chemistry, or asset inventory change both the sensor mix and the cost from there.
How satellite data is used in infrastructure monitoring
Satellite data enters infrastructure programs at several distinct points, each relying on a different sensor type and delivering different decision support to asset managers, engineers, and compliance teams.
Vegetation encroachment on transmission and rail corridors
Vegetation encroachment on rail and transmission corridors is a leading cause of preventable failures, and a single network can span thousands of kilometers that no walking crew inspects on a useful cycle.

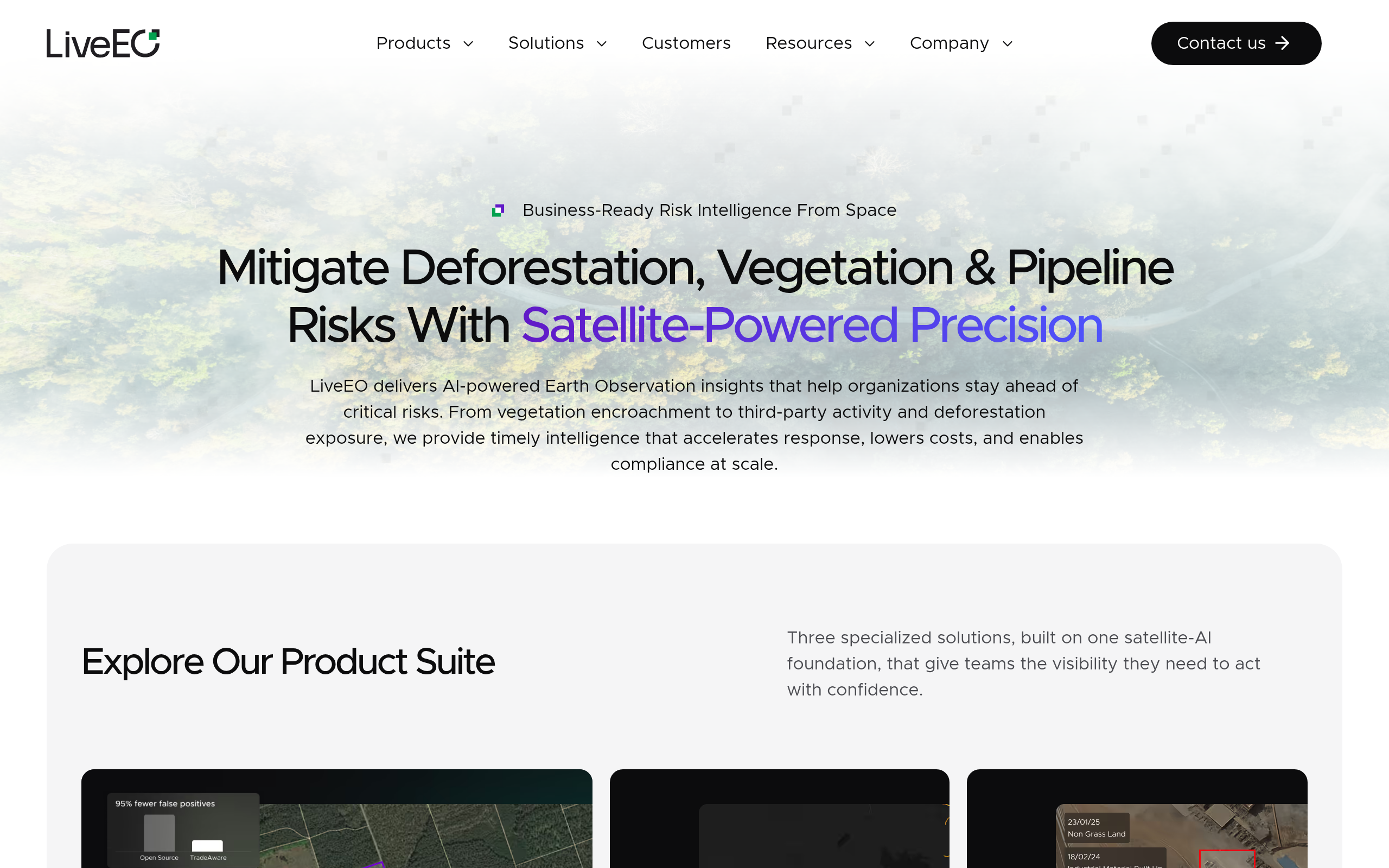

LiveEO’s Treeline platform applies AI to satellite and LiDAR data from partners to flag grow-in, fall-in, and vitality risk, and the product is built for both electric utilities and rail operators. Deutsche Bahn uses Treeline for railway vegetation monitoring in Germany. The same approach applied to power grids is covered in more depth in our guide to satellite imagery for energy.
In North America, transmission operators answer to NERC standard FAC-003-5, a defense-in-depth strategy to manage vegetation on rights-of-way and prevent outages that risk cascading failures. R1 bars encroachment into the Minimum Vegetation Clearance Distance, and R6 requires an annual inspection of 100 percent of applicable lines, no more than 18 months apart on the same corridor. The standard mandates the inspection, not the method, and its reach stops at North America.
AiDash runs a comparable vegetation platform across a wider utility base. Its IVMS product can scan and process networks of over 100,000 miles in a matter of weeks, and named customers span electric, gas, and water operators, including South West Water in the UK and Netze BW in Germany.
Structural deformation of bridges, dams and rail
Bridges, dams, and rail beds can shift for years before a crack or a wash-out becomes visible on the surface. Satellite radar interferometry, known as InSAR, measures that movement directly by comparing radar phase between passes, without a sensor installed on the structure itself.
TRE ALTAMIRA, a CLS Group company, processes Sentinel-1 and Airbus TerraSAR-X and PAZ data through its proprietary SqueeSAR algorithm, and its own technology page states an average displacement rate precision below 1 millimeter per year. Named engagements include tunnelling for the Grand Paris Express, transit infrastructure for RATP, and dam safety monitoring at Revelstoke.
Synspective’s StriX satellites generate their own X-band SAR and feed a Land Displacement Monitoring product built for millimeter-scale vertical displacement over a wide area. The company has a published case study monitoring the Fukuoka Expressway network in Japan through the same InSAR approach.
Asset inventory and change detection
Keeping an accurate inventory of bridges, towers, and buildings across a large portfolio is a mapping problem before it is an inspection problem, and manual digitization from imagery does not scale to a national network.
Ecopia AI applies proprietary artificial intelligence to imagery from its partner network rather than collecting imagery itself, extracting building footprints and other vector features at scale. Its Building-Based Geocoding product covers 180 million US building footprints, contractually guaranteed at 97 percent accuracy and updated annually, and Network Rail in the UK is among its named customers.
SAR-based change detection extends the same idea through cloud and darkness. ICEYE lists change detection among its own analytics products, comparing a fresh pass against an archived baseline to flag a new or demolished structure regardless of weather.
Water and wastewater network monitoring
A water main or a wastewater lagoon that is failing rarely shows visible signs on the surface. Chemical contamination and biological indicators build up in the water itself long before a break is visible.
Satelytics runs sensor-agnostic spectral algorithms over multispectral and hyperspectral imagery from any satellite, aircraft, or fixed camera a customer already has. Among its water and wastewater use cases, the platform flags chemical markers like arsenic and chlorides, alongside biological indicators such as chlorophyll-a.
Third-party interference and construction near assets
Unauthorized excavation, construction, or equipment operating too close to a buried or elevated asset is a leading cause of missed incidents between scheduled inspection visits.
LiveEO’s SurfaceScout product monitors linear corridors for third-party activity using SAR-based change detection that works in all weather, day or night. The company reports detecting four times more third-party activities than traditional aerial patrols, and puts the risk the product surfaces at €5 million per 1,000 kilometers of pipeline corridor.
Post-event damage assessment
After a storm, earthquake, or flood, operators need to know which substations, bridges, or rail segments are actually affected, often exactly when cloud cover is at its heaviest.
ICEYE operates its own X-band SAR constellation, so its imagery is unaffected by cloud or darkness, and the company runs a daily coherent revisit over monitored areas. Its natural catastrophe analytics cover flood, hurricane, and wildfire impact, with Munich Re among its named customers.
What satellite data you need for infrastructure monitoring
Different infrastructure tasks call for different sensor modalities, resolutions, and revisit frequencies. The table below maps each common task to the data specifications it requires.
| Task | Sensor modality | Resolution | Revisit | Key index / band |
|---|---|---|---|---|
| Transmission and rail corridor vegetation | Multispectral optical | 3-10 m | 5-12 days | NDVI, encroachment change |
| Vegetation clearance compliance | Optical plus partner LiDAR | Sub-meter to 3 m | Annual cycle | Clearance distance (MVCD) |
| Structural deformation (bridges, dams, rail) | SAR (InSAR) | Millimeter-scale displacement | 6-12 days per pass | Displacement rate (mm/year) |
| Asset inventory and footprint mapping | Very high-resolution optical | Sub-meter (partner-sourced) | Annual updates | Building and vector footprint |
| Water and wastewater network integrity | Multispectral and hyperspectral | Partner-sourced, sensor-agnostic | Per customer cadence | Water chemistry signature |
| Third-party interference detection | Optical and SAR (all-weather) | Partner-sourced | Under 24-hour reporting | Change detection |
| Post-event damage assessment | SAR | Sub-meter (Dwell Precise) | Daily to sub-daily | Flood, burn, and change extent |
| Point-asset siting (towers, poles) | Very high-resolution optical | Sub-meter | Per project | Object and vector detection |
With data requirements mapped, the next step is identifying which providers can supply them. The section below covers the most relevant options for infrastructure programs, from vegetation analytics to deformation specialists.
Satellite data providers for infrastructure monitoring
The providers below have documented infrastructure use cases and data products that map to the tasks in the table above. The mix spans analytics platforms, a SAR satellite operator, and a multi-source access point.
| Provider | Type | Best for | Key infrastructure spec | Entry point |
|---|---|---|---|---|
| LiveEO | Analytics platform | Rail and transmission vegetation | Treeline: rail plus power corridors | Enterprise contract |
| AiDash | Analytics platform | Multi-utility vegetation risk | Over 100,000 miles in weeks | Demo request |
| Satelytics | Analytics platform | Water and wastewater integrity | Sensor-agnostic spectral analytics | Contact for pricing |
| TRE ALTAMIRA | Analytics platform | Bridge, dam, and rail deformation | Sub-mm/year SqueeSAR precision | Quote-based |
| ICEYE | SAR satellite operator | Post-event SAR damage assessment | 16 cm Gen4 resolution | Quote or UP42 marketplace |
| Sfera Technologies | Multi-source access point | Several sensor types in one contract | Optical, SAR, hyperspectral | From $4 per km² optical |
For a ranked shortlist of providers across the wider market, our guide to the best satellite imagery providers covers head-to-head specifications beyond infrastructure. Programs leaning on deformation monitoring should also review the best SAR data providers guide, which ranks the radar specialists in more depth.
How to choose satellite data for infrastructure monitoring
The first decision is what the data has to prove. A vegetation risk score for a rail corridor and a displacement trend for a dam are different products built from different sensors, and a provider strong at one is rarely the cheapest route to the other.
Regulatory exposure sets the second cut. North American transmission operators already answer to the annual inspection cycle in NERC FAC-003-5, and the same principle applies wherever an asset class carries a mandatory safety inspection requirement: a documented, repeatable record beats an occasional site visit.
Asset type and geography decide the sensor mix next. Vegetation risk along a corridor is an optical and multispectral job, structural safety for a bridge or dam is a radar and InSAR job, and buried or underwater assets rule out optical entirely. Programs spanning several asset classes at once usually need more than one sensor type.
Budget follows from network size and how often you need an answer. Continuous monitoring of a large, distributed network is cheaper on an enterprise or area-based contract than on per-scene ordering, while a single bridge assessment or a post-event damage survey is the case for quote-based, per-tasking pricing instead.
Data rights matter here in a way they do not elsewhere. Verify whether your intended use, including regulatory submissions, insurance claims, or public disclosure of a deformation map, is permitted under the provider’s standard commercial license before committing budget to a single source.
Verdict
Infrastructure monitoring is the vertical where the sensor question changes with the asset. A vegetation risk score, a millimeter displacement trend, and a building footprint count are three different data products, not variations on the same one.
Rail and transmission operators should start with LiveEO and AiDash, since vegetation risk along a corridor is their core product. Teams responsible for a bridge, dam, or tunnel need a deformation trend from TRE ALTAMIRA or Synspective, not a single high-resolution image. Asset managers building a portfolio inventory get more from Ecopia AI’s footprint data, and post-event response leans on ICEYE’s all-weather SAR.
Programs that span several of these asset classes at once draw on optical, SAR, and hyperspectral data from different vendors, and Sfera Technologies packages several of those sensor types under a single commercial contract for teams that would rather not manage each relationship separately. For a full ranked view of the imagery market, see our satellite imagery providers guide, and for the radar side specifically, our SAR data providers ranking covers the current commercial options.
Frequently asked questions
Below are answers to the questions infrastructure teams most often ask. Each answer points to the section where the full detail lives.
How is satellite data used in infrastructure monitoring?
Satellite data covers six main workflows: vegetation risk on transmission and rail corridors, structural deformation of bridges and dams, asset inventory and change detection, water and wastewater network integrity, third-party interference near assets, and post-event damage assessment. The detail is in “How satellite data is used in infrastructure monitoring“.
What does NERC FAC-003 require for vegetation inspection on transmission lines?
NERC standard FAC-003-5 requires transmission operators to inspect 100 percent of applicable lines at least once a year, no more than 18 months apart on the same right-of-way. It also bars encroachment into the Minimum Vegetation Clearance Distance for those lines. The standard sets the inspection cadence, not the method, and applies only in North America, as covered in “How satellite data is used in infrastructure monitoring“.
What resolution do I need for infrastructure monitoring?
Vegetation risk along a corridor works at 3 to 10 meters with a multispectral sensor, while asset inventory and footprint mapping need sub-meter, very high-resolution optical. Structural deformation is not really a spatial-resolution question, since InSAR measures millimeter-scale movement regardless of pixel size. The full task-to-resolution mapping is in “What satellite data you need for infrastructure monitoring“.
Can satellites detect deformation in bridges, dams, or rail beds?
Yes. Interferometric radar, or InSAR, compares the phase of repeated satellite passes over the same ground to measure movement at a millimeter scale, and providers such as TRE ALTAMIRA and Synspective build commercial products around exactly that capability. The approach works day or night and through cloud cover, as described in “How satellite data is used in infrastructure monitoring“.
Which satellite data providers are best for infrastructure monitoring?
LiveEO and AiDash lead on vegetation risk for rail and transmission corridors, TRE ALTAMIRA and Synspective cover structural deformation, and Ecopia AI supplies the asset inventory data portfolio managers need. ICEYE adds all-weather SAR for post-event assessment, and Sfera Technologies packages several of these sensor types under one contract. Provider details are in “Satellite data providers for infrastructure monitoring“.
How does infrastructure monitoring differ from energy-sector vegetation management?
Energy-sector monitoring focuses on the transmission and distribution grid alone. Infrastructure monitoring is broader, adding rail corridors, bridges, dams, telecom towers, and water and wastewater networks, each with its own dominant sensor and provider mix. The full breakdown is in “How satellite data is used in infrastructure monitoring“.
